Item |
Unit |
HJ-HT (Super Clear EVA Film) |
HJ-AT (Super Clear EVA Film – High Fluidity) |
|
Standard Thickness |
mm |
0.38 / 0.76 |
0.38 / 0.76 |
|
Standard Width |
mm |
up to 2600 |
up to 2600 |
|
Length (Roll) |
m |
100 (0.38 mm) / 50 (0.76 mm) |
100 (0.38 mm) / 50 (0.76 mm) |
|
Visible Light Transmittance (VL) |
% |
> 90.4 |
> 90.6 |
|
Haze |
% |
< 0.25 |
< 0.29 |
|
UV Blocking Rate (280–380 nm) |
% |
≥ 99 |
≥ 99 |
|
Crosslinking Rate |
% |
> 85 |
> 85 |
|
Adhesion with Glass |
N/cm |
> 95 |
> 77 |
|
Tensile Strength |
MPa |
> 17 |
> 20 |
|
Elongation at Break |
% |
≥ 750 |
≥ 800 |
|
Water Absorption |
% |
≤ 0.1 |
≤ 0.1 |
|
Weather Resistance |
— |
Pass (100 °C boiling, 85 °C/85% RH) |
Pass (100 °C boiling, 85 °C/85% RH) |
|
UV Aging Test |
ΔYI |
< 1 |
< 1 |
|
Processing Performance |
— |
Standard flow |
High Fluidity – faster flow, better penetration, reduced bubbles |
|
Typical Applications |
— |
Curtain walls, guardrails, automotive glass, bullet-resistant glass |
Curtain walls, guardrails, automotive glass, bullet-resistant glass (especially where high processing efficiency is required) |
Extra Clear EVA（High flow)
Product Features ：
1.High Fluidity for Better Processing
Ensures faster flow and deeper penetration during lamination, reducing bubbles and improving production efficiency compared with HJ-HT.
2.Ultra-Clear Transparency
Visible light transmittance >90.6% with haze <0.29%, delivering excellent optical clarity.
3.Strong Adhesion & Safety
Adhesion to glass >77 N/cm provides secure bonding, preventing delamination and ensuring safety in impact situations.
4.Superior Mechanical Strength
Tensile strength >20 MPa and elongation ≥800% guarantee reliability under mechanical stress.
5.Crosslinking Stability
Crosslinking rate >85% ensures dimensional stability and resistance to creep over long-term use.
6.UV Protection & Anti-Yellowing
Blocks >99% of harmful UV rays (280–380 nm) and maintains stable appearance with ΔYI <1.
7.Weather & Moisture Resistance
Performs well in boiling water, high-humidity, and high-temperature tests with no bubbles or delamination.
8.Bare-Edge Installation Ready
Suitable for outdoor laminated glass without edge sealing, ensuring durability in harsh environments.
9.Wide Applications
Ideal for curtain walls, guardrails, automotive glass, and bullet-resistant laminated glass.
Product Description
The HJ-AT Super Clear EVA Film for Outdoor is a high-performance interlayer developed by E&N HONJIA for demanding laminated glass applications in exterior environments. Compared with HJ-HT, HJ-AT features higher fluidity, which enables faster flow and better penetration during lamination. This property reduces bubble residues, improves processing efficiency, and ensures superior edge sealing, making it ideal for projects with strict manufacturing requirements.
HJ-AT is available in standard specifications of 0.38 mm × 2500 mm × 100 m and 0.76 mm × 2500 mm × 50 m, with customized thickness and width options upon request. It delivers visible light transmittance above 90.6%, haze below 0.29%, and UV blocking above 99% (280–380 nm), providing excellent optical clarity and long-term protection.
Structurally, HJ-AT offers tensile strength >20 MPa, elongation at break ≥800%, and adhesion to glass >77 N/cm, making it suitable for bare-edge applications without delamination. With a crosslinking rate above 85%, it guarantees high stability, creep resistance, and durability even under severe weather conditions.
Typical applications include architectural curtain walls, guardrail glass, automotive glass, and bullet-resistant laminated glass, where clarity, safety, durability, and processing efficiency are critical.
Product Application
The HJ-AT Super Clear EVA Film is specifically designed for outdoor laminated glass where both optical clarity and processing efficiency are critical. Thanks to its high fluidity, it ensures smoother lamination, fewer bubbles, and better penetration, making it ideal for advanced glass processing projects.

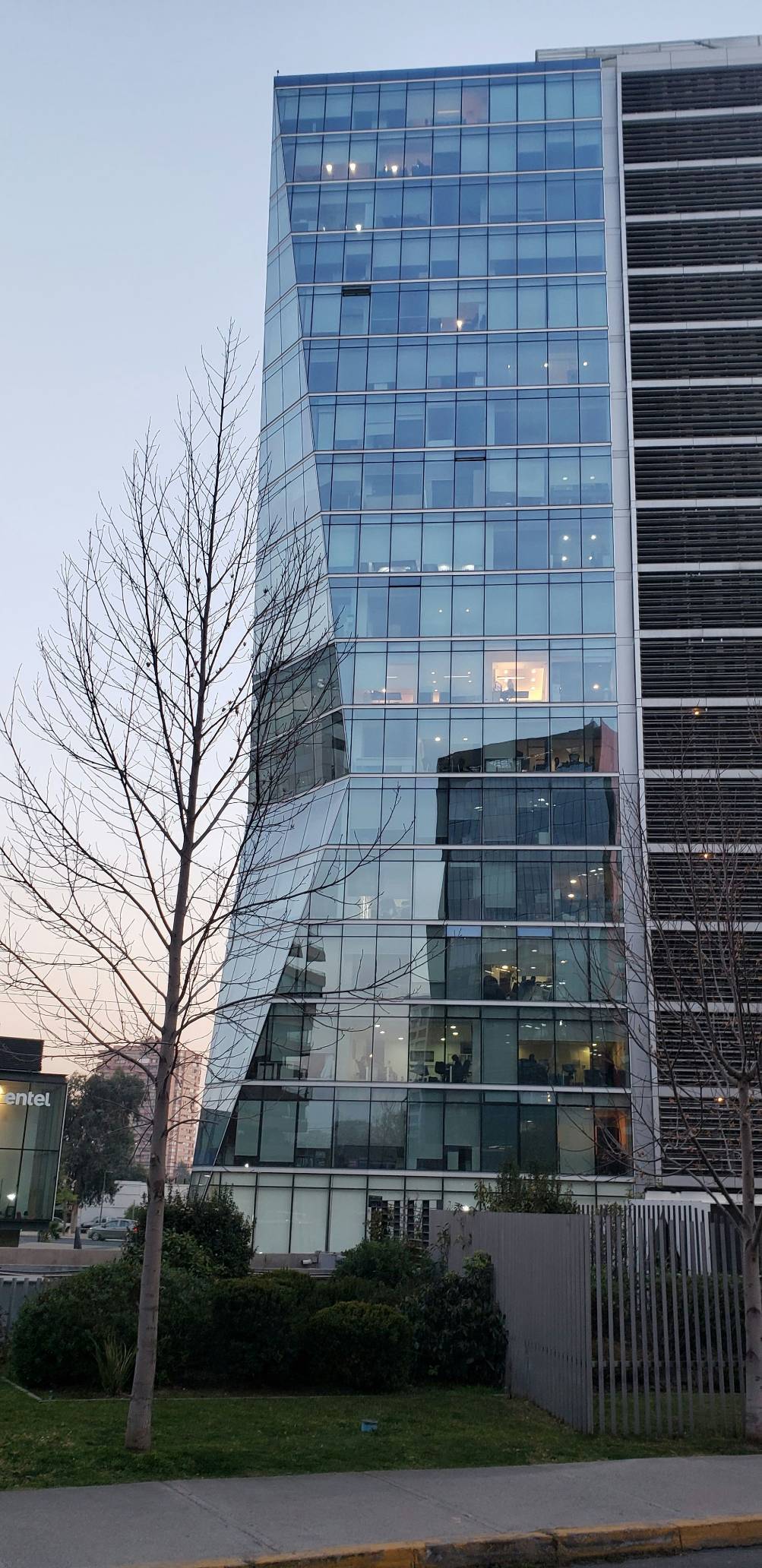

- Architectural Curtain Walls
Provides crystal-clear transparency and long-term stability for large glass façades exposed to sunlight and weather.

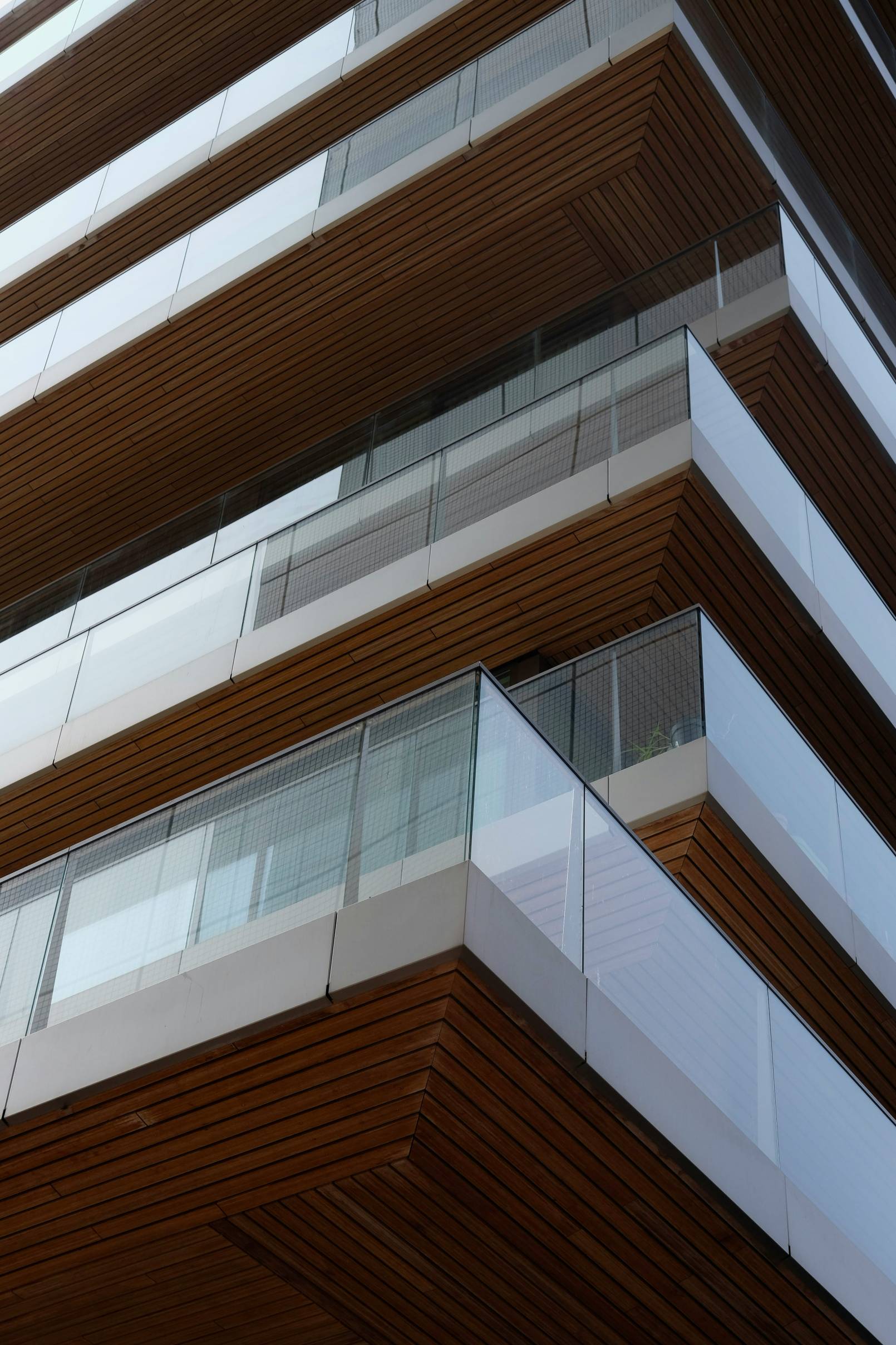

- Glass Guardrails & Balustrades
Ensures safety, clarity, and strong bonding in balconies, staircases, and outdoor public spaces.
- Automotive Glass
Applied in windshields, panoramic sunroofs, and specialty vehicle glass where high strength and clarity are essential.
- Bullet-Resistant & Security Glass
Delivers high tensile strength and fragment retention, ensuring reliable performance for security glazing.
- Outdoor Decorative Glass

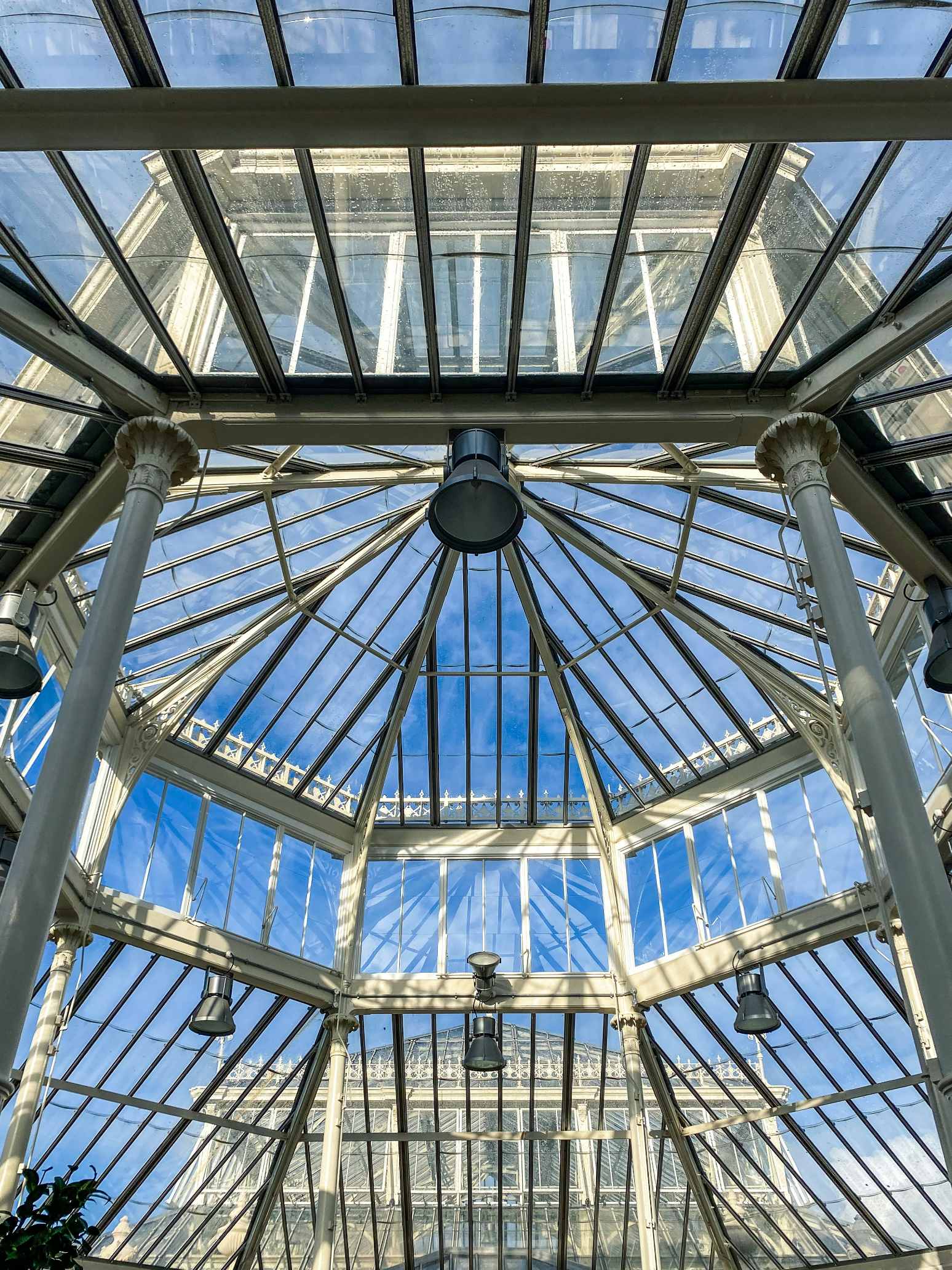

Ideal for skylights, transparent roofing, and exterior installations requiring UV resistance and long-lasting clarity.
FAQ
Q1: Can I get a sample before placing an order?
A1: Yes, we provide free samples for quality testing. Customers only need to cover the courier cost. Customized samples are also available upon request.
Q2: What is the minimum order quantity (MOQ)?
A2: Our standard MOQ is usually one full roll per thickness and width specification. For trial orders or new customers, we can be flexible.
Q3: What payment terms do you accept?
A3: We accept T/T (bank transfer), L/C at sight, and other negotiable terms. Typically, 30% deposit is required, with the balance paid before shipment.
Q4: What is your delivery time?
A4: Standard lead time is 7–15 working days after receiving the deposit, depending on order quantity and specifications. Urgent orders can be arranged upon request.
Q5: How do you ensure product quality?
A5: All our EVA films are produced in a dust-free workshop and tested in our technology research center. Each roll undergoes strict inspection for thickness, adhesion, UV resistance, and color stability before delivery.
Q6: Can you produce customized sizes or colors?
A6: Yes, we offer customization for thickness, width, roll length, and colors according to customer requirements.
Q7: How do you package the EVA film?
A7: Films are packed in protective PE film with outer carton or pallet, ensuring safe transportation and long shelf life.
Q8: Which markets do you export to?
A8: Our products are widely exported to Europe, North America, Southeast Asia, and the Middle East, serving both glass processors and construction projects worldwide.
